Description
KEY FEATURES

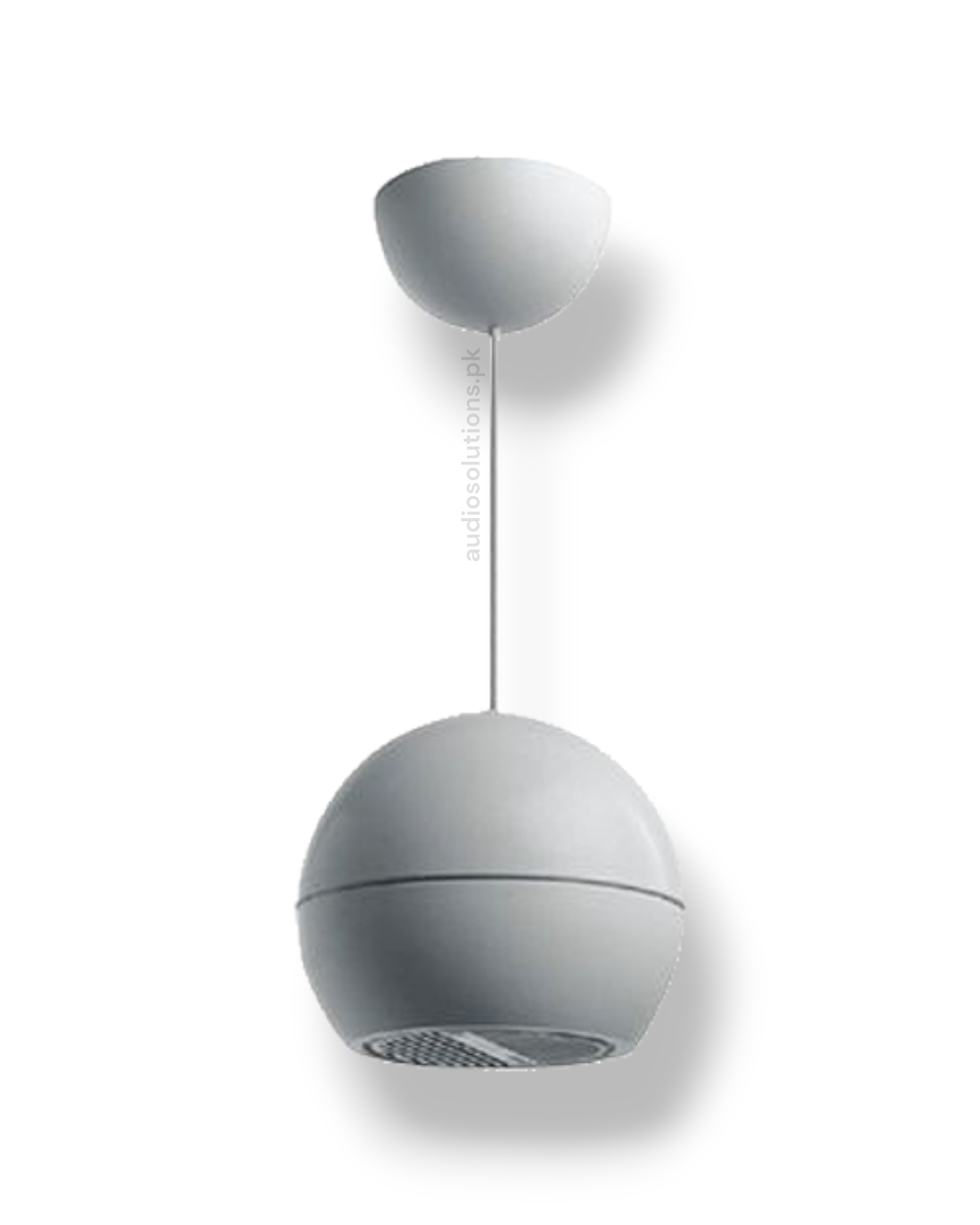

Model: lbc 3095/15
| Electrical | |
| Maximum power | 15 W |
| Rated power | 10 / 5 / 2.5 W |
| Sound pressure level at 10 W / 1 W (1kHz, 1 m) | 99 dB / 89 dB (SPL) |
| Opening angle at 1 kHz / 4 kHz (-6 dB) | 180° / 90° |
| Effective frequency range (-10 dB) | 130 Hz to 20 kHz |
| Rated voltage | 100 V |
| Rated impedance | 1000 ohm |
| Connection | 5 m 4-wire cable |
| Mechanical | |
| Dimensions (D x L) | 185 x 157 mm (7.3 x 6.2 in) |
| Weight | 2.5 kg (5.5 lb) |
| Color | White (RAL 9010) |
| Environmental | |
| Operating temperature | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
| Storage temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
