Description
Model: BY-AM1
Microphone Inputs
Frequency Response: 20Hz- 20kHz±0.1dB
Maximum lnput Level: 9dBu (at minimum gain)
Line Inputs
Frequency Response: 20Hz- 20kHz±0.1dB
THD: <0.01%
S/N: 80dBU
Maximum lnput Level: 15dBu (at minimum gain)
Gain Range: 50dB
lmpedance: 47kΩ
Instrument Input
Frequency Response: 20Hz – 20kHz±0.1dB
Maximum lnput Level: 8dBu (at minimum gain)
Headphone Outputs
S/N: 75dB
THD: <0.01%
Maximum Output Level: 6dBu
lmpedance: <10Ω
Sampling Rates: 44.1kHz,48kHz,88.2kHz,96kHz,
176.4kHz,192kHz
USB Connection: USB 2.0 (USB-B connector)
Power Requirements: Powered by computers
Power Supply: 48V Phantom Power
Line/Monitor Outputs
S/N: 80dBU
THD: <0.01%
Maximum Output Level: 10dBu
lmpedance: 470Ω
Specification
Dimensions: 160*105*41.5mm (6.3*4.1*1.6′)
Weight:408.5g(14.4 Oz)

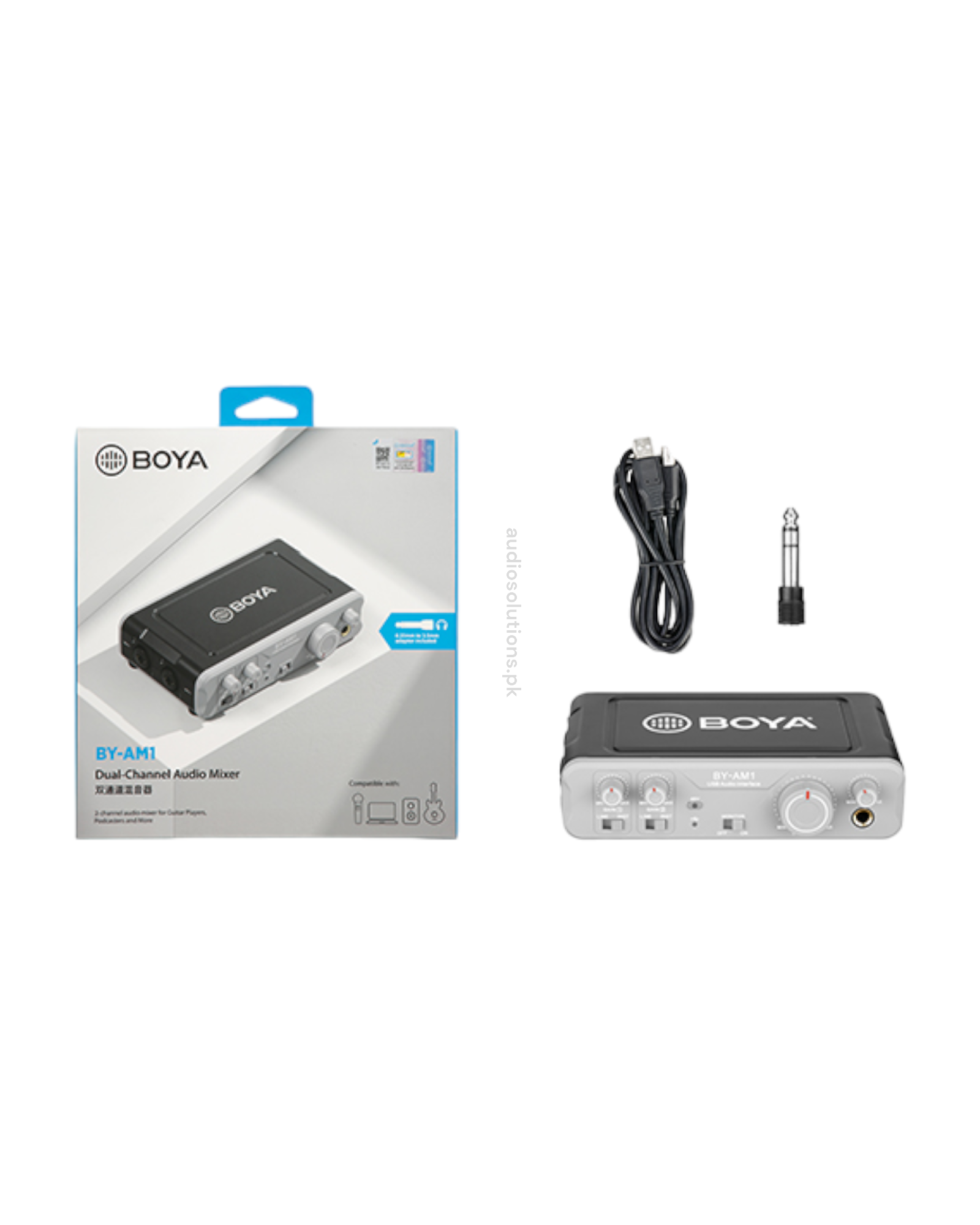

Packing List
– 6.6′(2m) USB-A to USB-B cable
– 6.35mm to 3.5mm TRRS audio adapter
