Description
KEY FEATURES

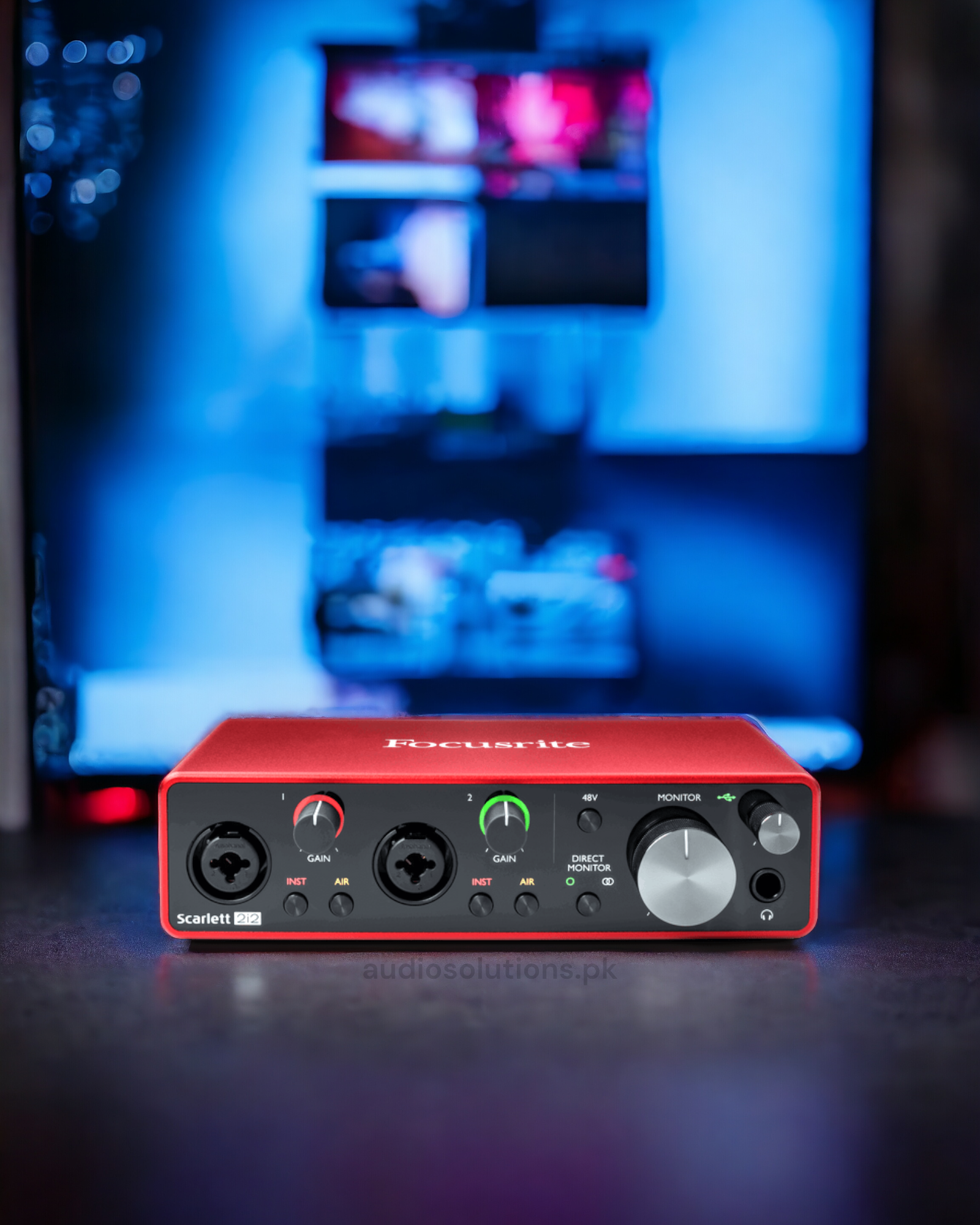

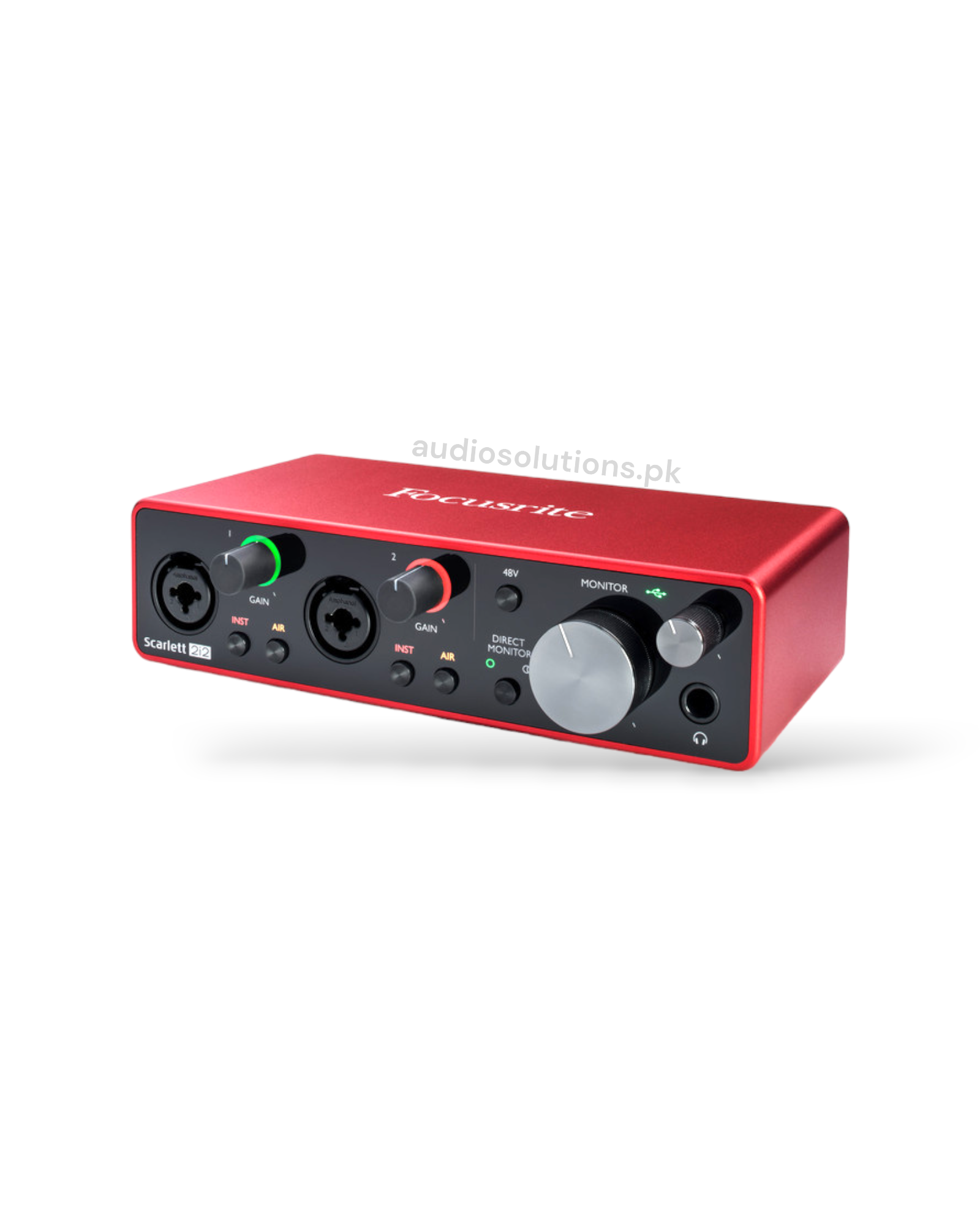

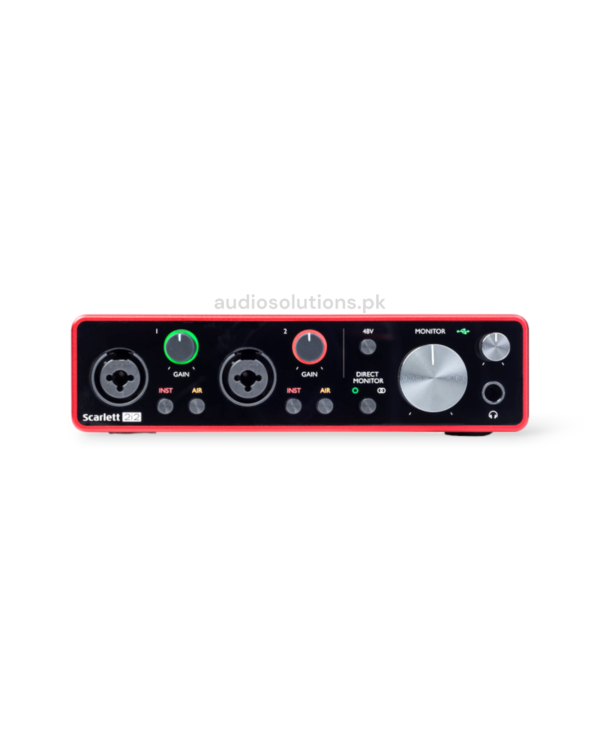

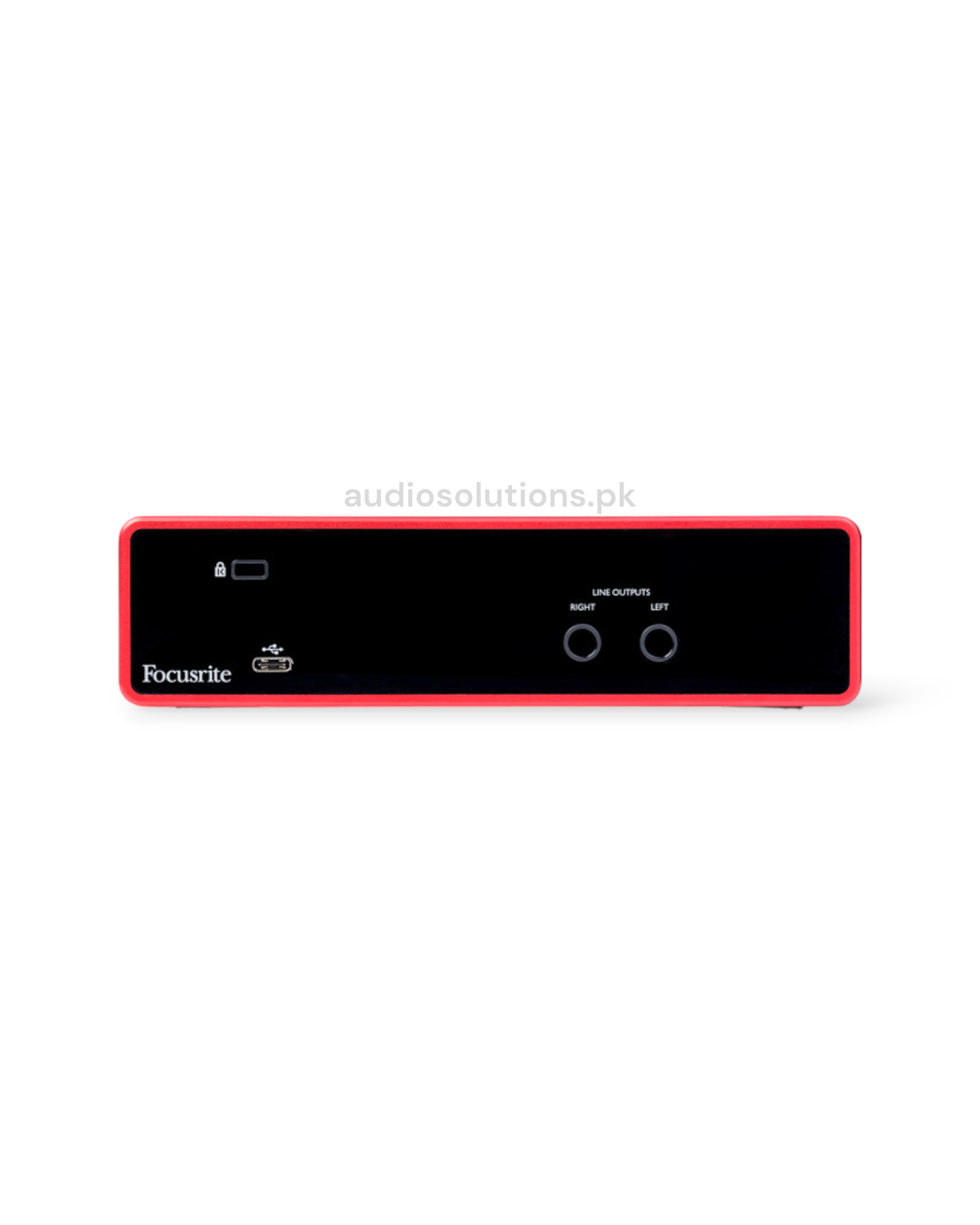

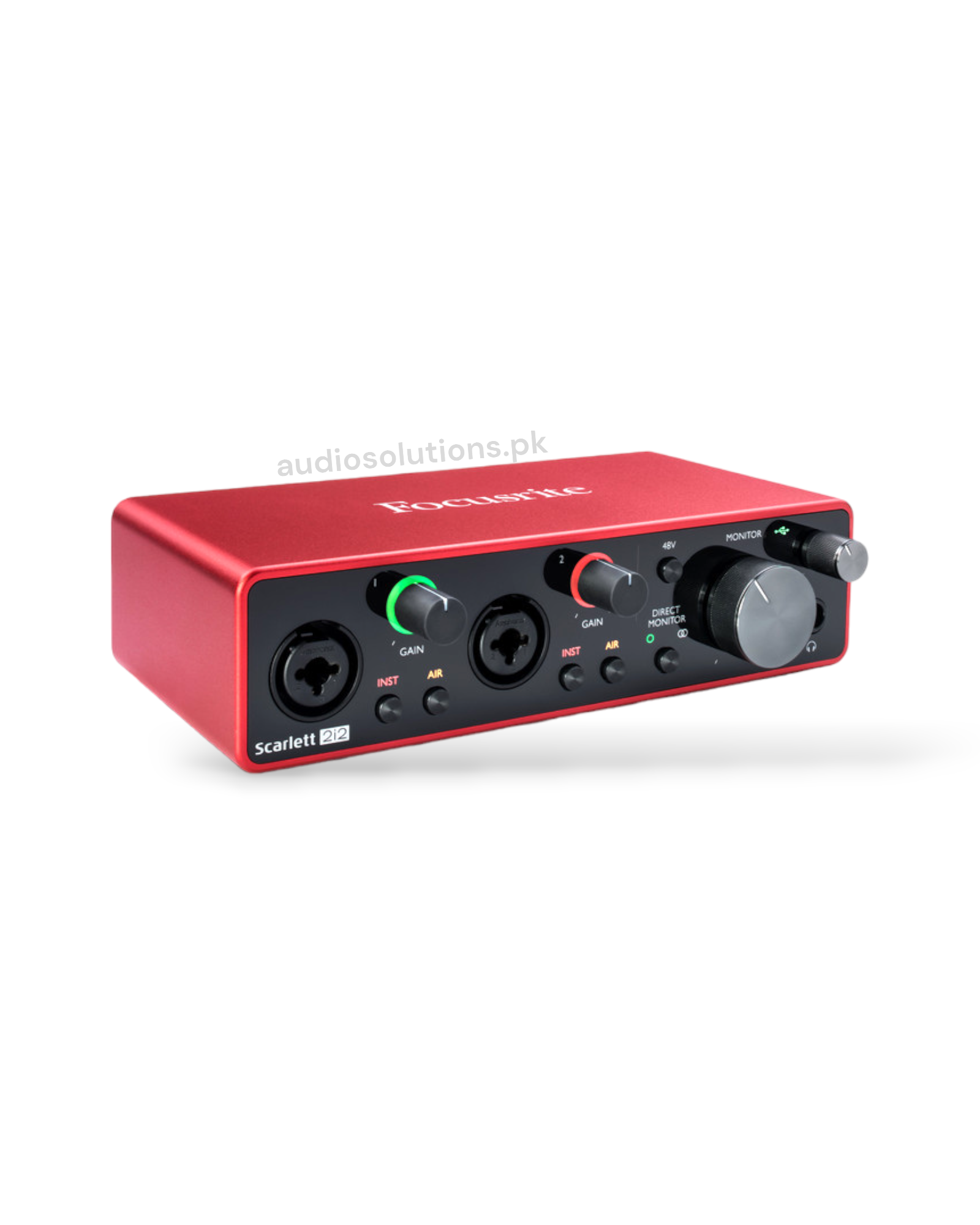

Model: 2i2[3rd Gen]
Overview
Protocol: USB 2.0
Form factor: Desktop
Simultaneous I/O: 2 x 2
A/D resolution: 24-bit/192 kHz
Number of preamps: 2
Phantom power: Yes
Instrument inputs: 2
Line inputs: 2
Analogue inputs: 2
Headphone outputs: 1
Bus powered: Yes
Supported sample rates
–44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Line inputs
Frequency response: 20Hz – 20kHz ± 0.1dB
Dynamic range: 110.5dB (A-weighted)
THD+N: <0.002%
Maximum input level: 22dBu (at minimum gain)
Gain range: 56dB
Impedance: 60kΩ
Instrument inputs
Frequency response: 20Hz – 20kHz ± 0.1dB
Dynamic range: 110dB (A-weighted)
THD+N: <0.03%
Maximum input level: 12.5dBu (at minimum gain)
Gain range: 56dB
Impedance: 1.5MΩ
Microphone inputs
Frequency response: 20Hz – 20kHz ± 0.1dB
Dynamic range: 111dB (A-weighted)
THD+N: <0.0012%
Noise EIN: -128dBu (A-weighted)
Maximum input level: 9dBu (at minimum gain)
Gain range: 56dB
Impedance: 3kΩ
Line/monitor outputs
Dynamic range (line outputs): 108dB
THD+N: <0.002%
Maximum output level (0 dBFS): 15.5dBu
Impedance: 430Ω
Headphone outputs
Dynamic range: 104dB (A-weighted)
THD+N: <0.002%
Maximum output level (0 dBFS): 7dBu
Impedance: <1Ω
Connectivity
–requires 900mA USB port
