Sale!

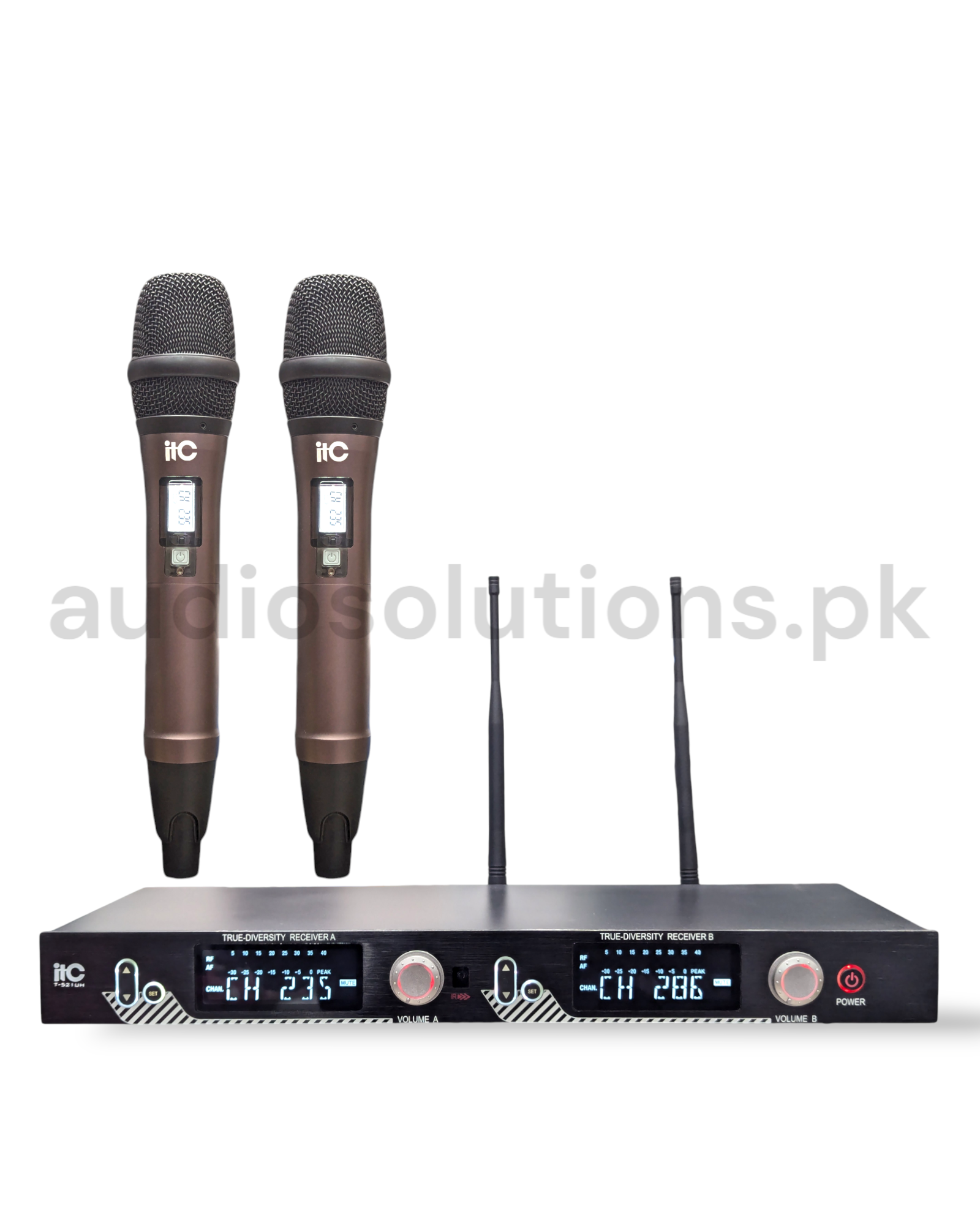

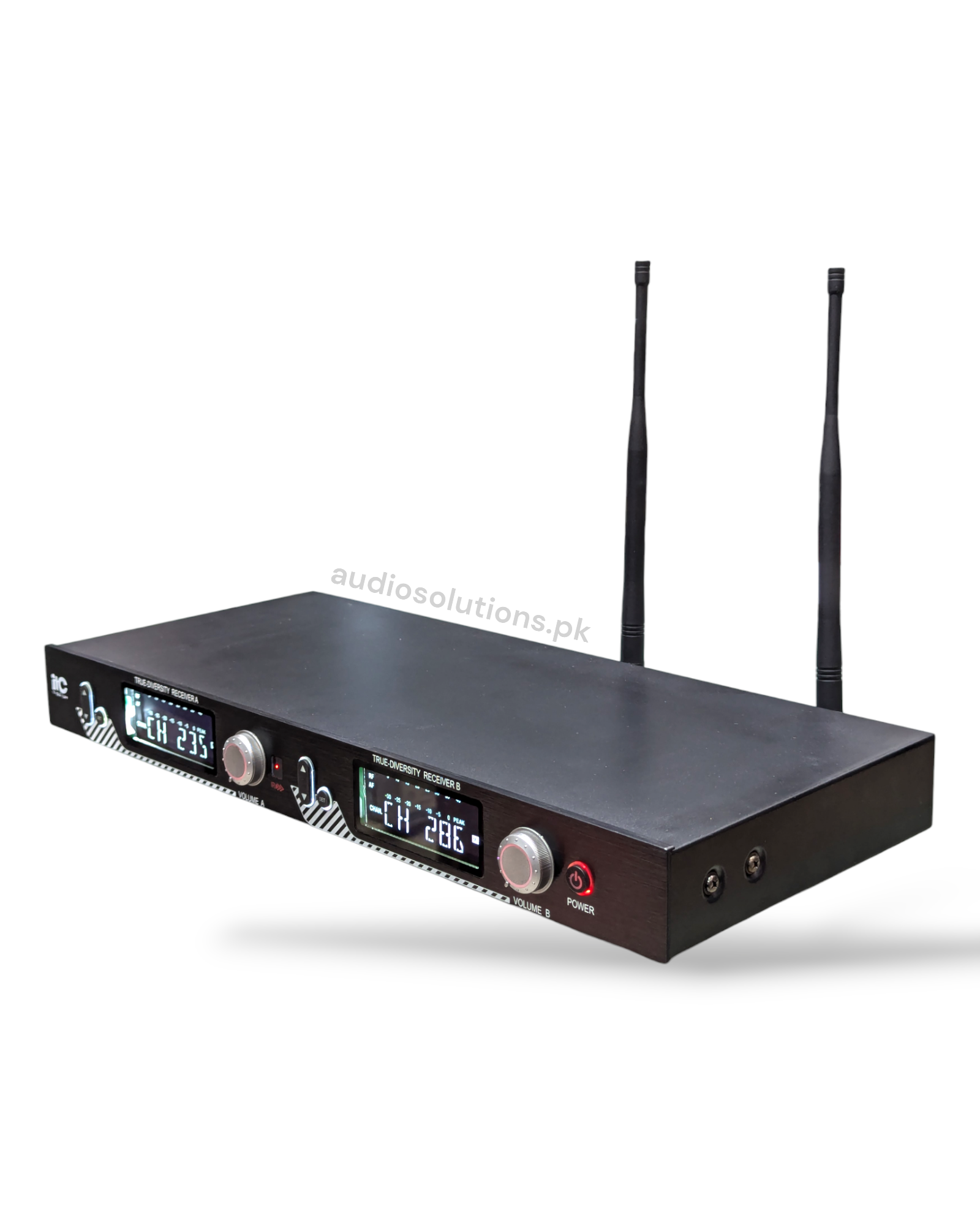

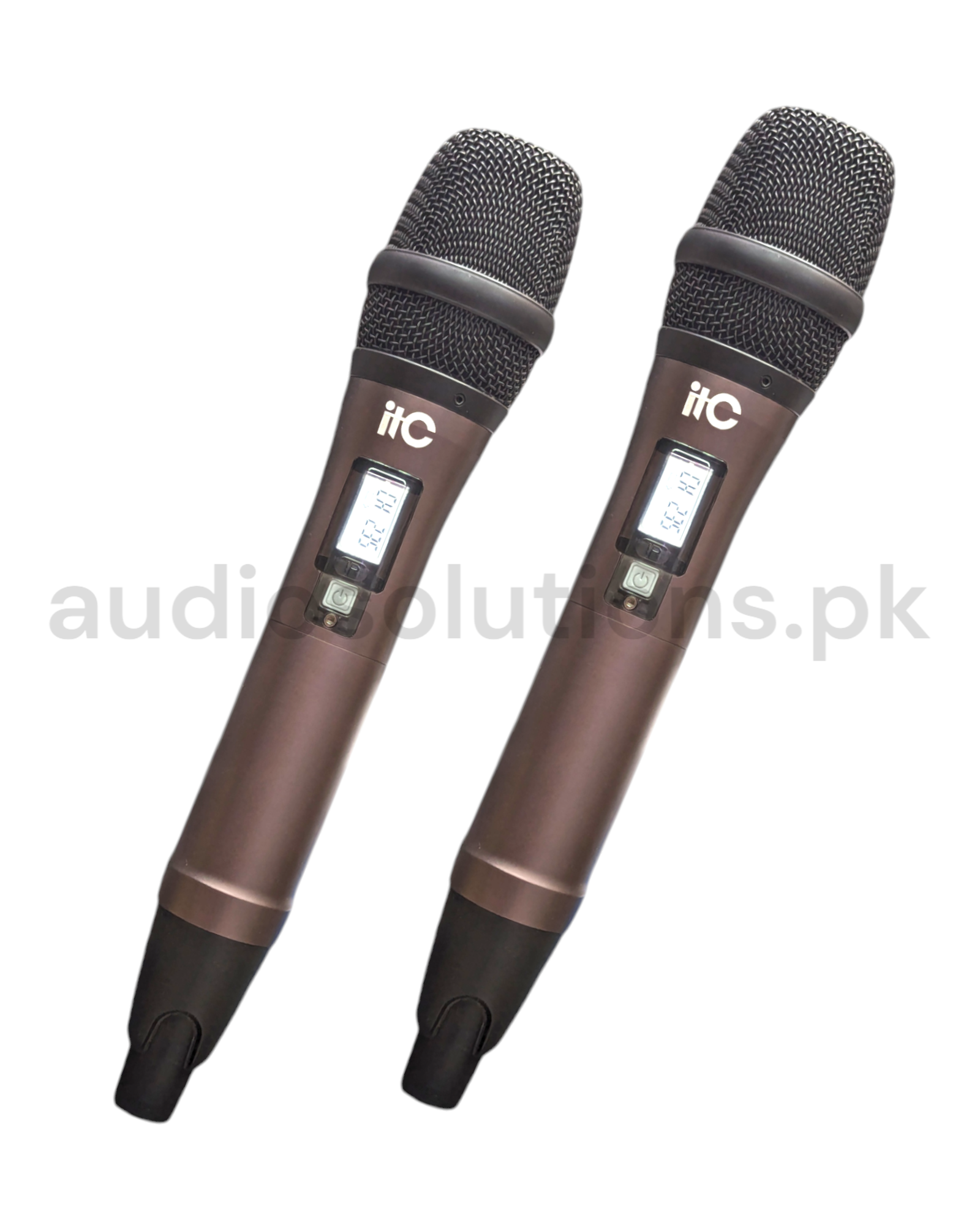

ITC T-521UH UHF segment LCD liquid crystal display FM true diversity Wireless Microphone

ITC T-521UH

ITC T-521UH UHF segment LCD liquid crystal display FM true diversity Wireless Microphone, two handheld mics, automatic frequency scanning function, 640-857MHz (the applicable frequency depends on the local regulation), Comprehensive S/ N Ratio: 105dB, Broadband FM, -10℃~+60℃.

Function Features
—Using UHF ultra-high frequency double true diversity reception, and USES the DPLL
multichannel digital phase-locked loop frequency synthesis technology.
—Provides each of 200 a total of 600 channels to choose, true diversity receiving, effectively
avoiding the phenomenon of fault frequency and to extend the receiving distance.
—With a magnitude 8, according to 8 audio level display, according to the audio level,
according to the channel menu mute.

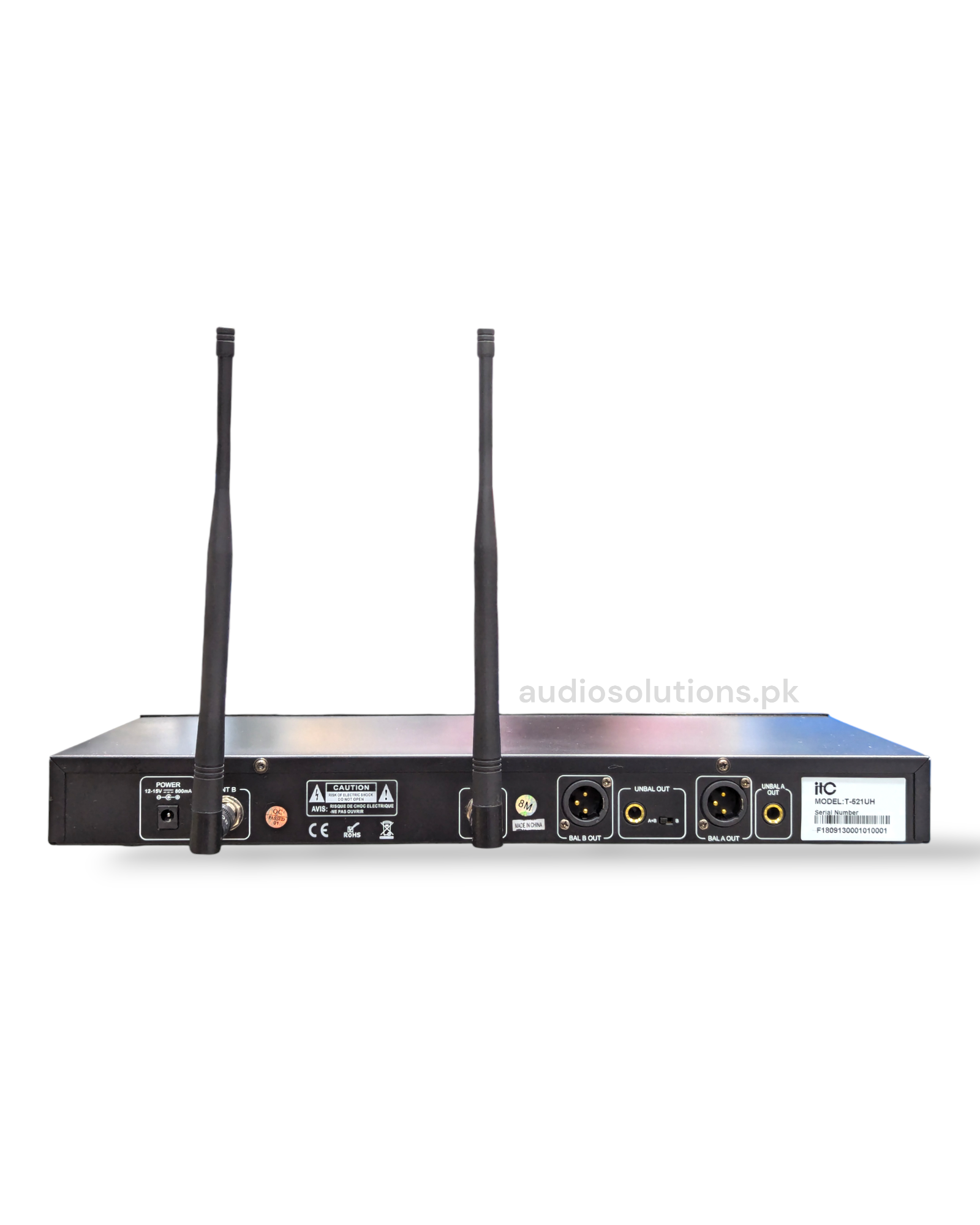

—Balanced and unbalanced output port, two choices to meet the needs of different device to
connect.
—LCD liquid crystal display can also show channel number and working frequency.
Light touch button control is simple, which let users to use it more conveniently.
—Strong anti-interference ability, can effectively restrain noise caused by th external
interference and same frequency interference.
—Infrared frequency function, can be convenient, shortcut of the transmitter and receiver
synchronization.
—Enough intermediate frequency, Relaxed singing, sounds with magnetic and mixed thick
feeling, the essence of the vocal microphone sound.

98,000.00

Description

KEY FEATURES

Model: T-521UH

FREQUENCY MODULATION

Frequency 640-857MHz (the applicable frequency depends on the local regulation)Broadband FM
Modulation Broadband FM
Number of channel 100-200 per frequency band
Channel interval Multiples of 250KHz
Frequency stability within ±0.005%
Dynamic range 100dB
Maximum frequency deviation ±45KHz
Frequency response 80Hz-18KHz (±3dB) (the frequency of the entire system depends on the microphone unit)
Integrated SNR 105dB
Integrated distortion ≤0.5%
Working distance The straight-line barrier-free distance can reach about 100m (working distance depends on many factors, including RF signal absorption, reflection, and interference, etc)
Working temperature -10℃~+60℃

RECIEVER INDICATION

Receiving mode Double frequency conversion super heterodyne
IF frequency rate 110MHz,10.7MHz
Wireless interface BNC/50Ω
Sensitivity 12dB μV(80dBS/N)
Sensitivity range 12-32dB μV
Discrete suppression ≥75dB
Maximum output level +10dBV
Power supply DC 12V~1A input
Weight 1.95 Kg (excluding antenna)
Size 422×180×44.5mm(L×D×H)

TRANSMITTER PARAMETERS

Sound head Moving-coil microphone or condenser microphone
Condenser microphone (lapel microphone, headset microphone)
Antenna The hand-held microphone has a built-in helical antenna, and the pendant transmitter uses a 1/4 wavelength whip antenna
Output power High power 30Mw; low power 3Mw
Discrete suppression -60dB
Power supply 2 AA 1.5V alkaline batteries
Battery lifespan About 6h at 30Mw, it depends on battery capacity
Function True diversity reception method can effectively avoid frequency interruption and extend the receiving distance
Sound quality Rich IF, magnetic and mixed sound
Weight 0.34Kg (hand-held), 0.06Kg (lapel), (excluding battery)
Size 268mm (L)×35mm (D) (hand-held), 83mm × 63mm × 22mm (L*W*T) (lapel)
