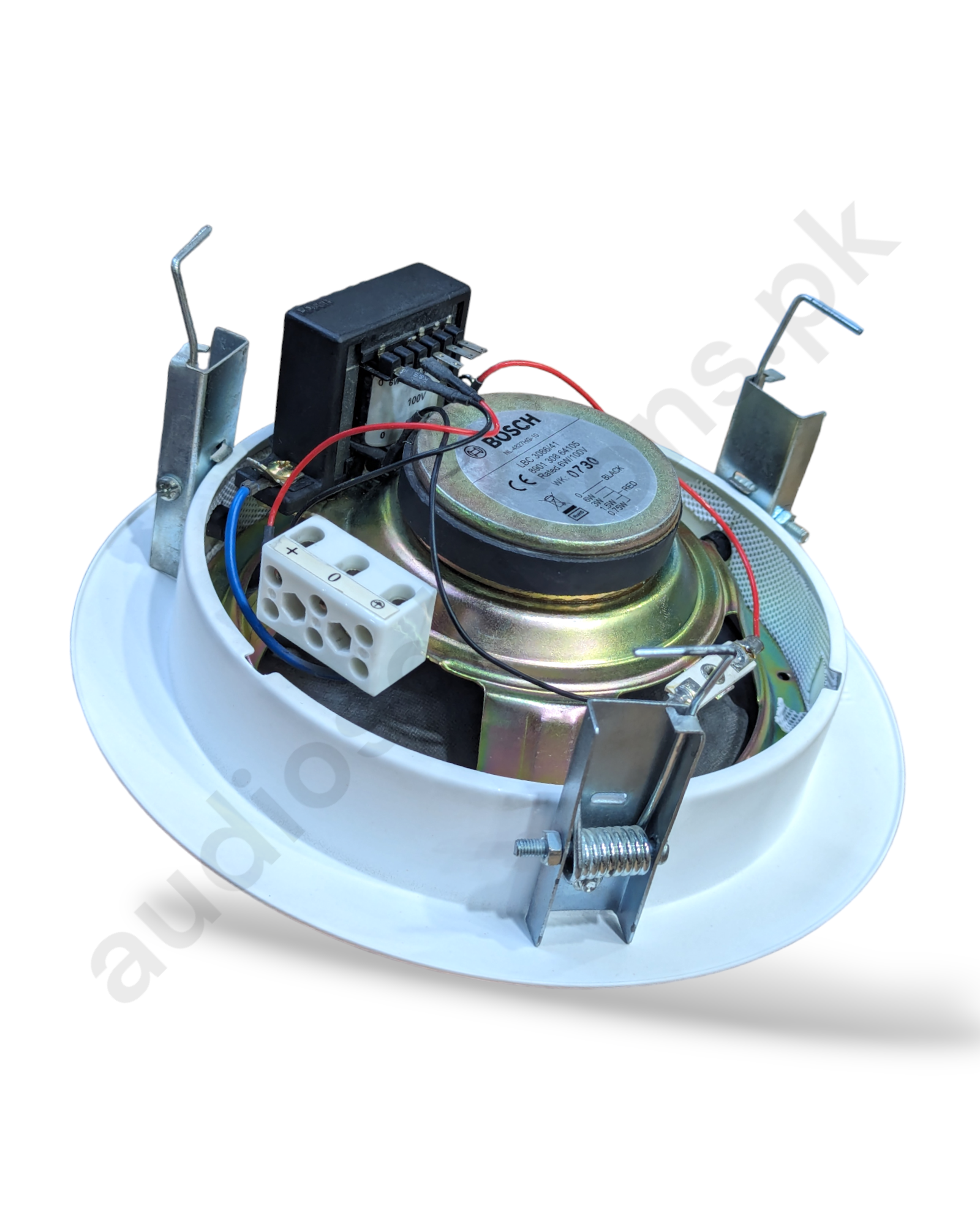

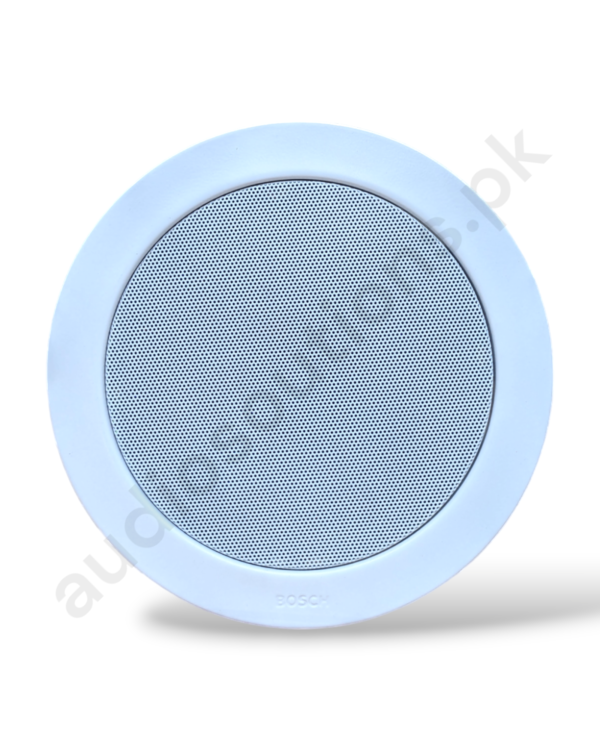

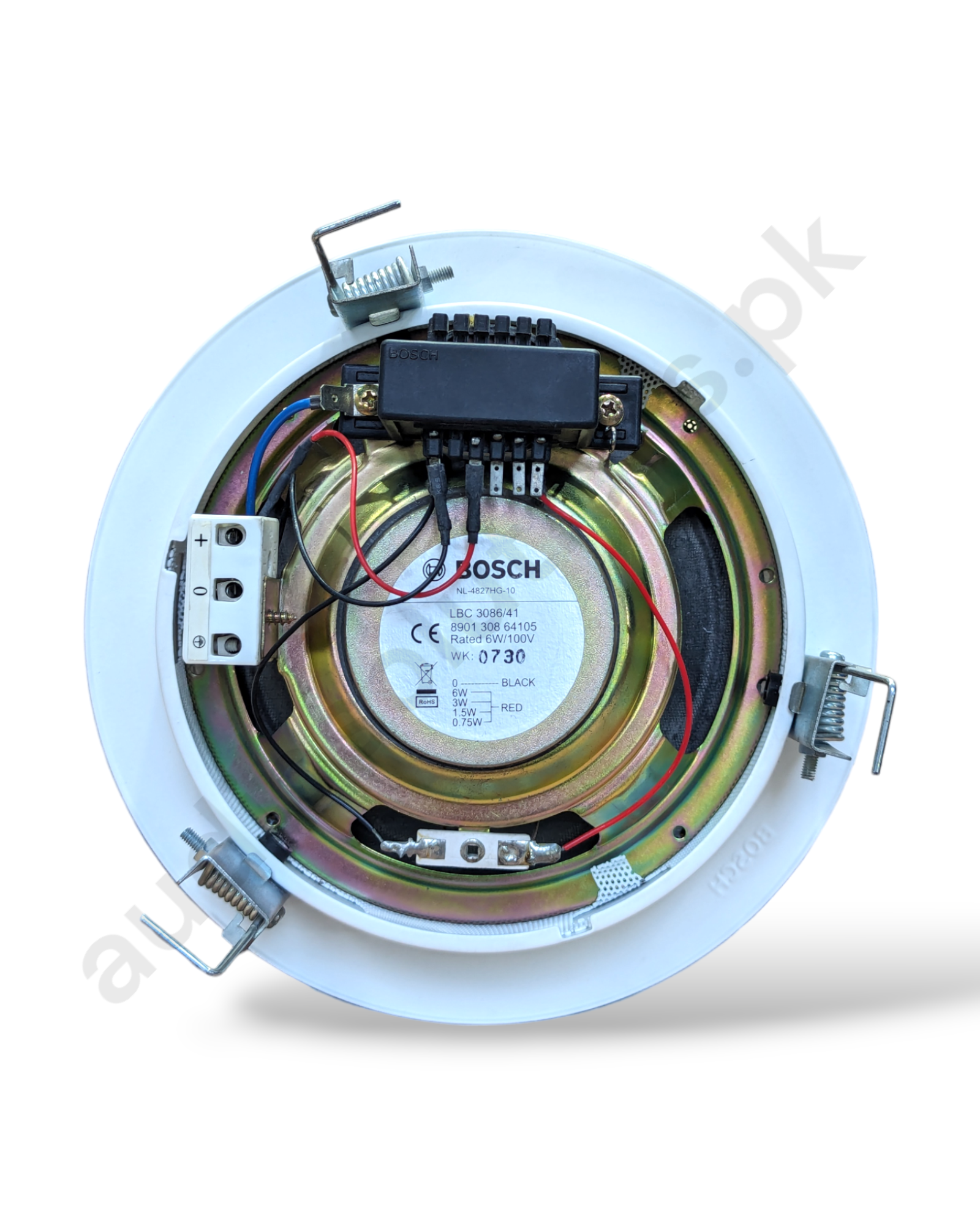

—The Bosch LBC 3086/41 dual-cone ceiling loudspeaker is rated at 6 watts, 100 volt line
—Suitable as a voice alarm loudspeaker (when used with the firedome), the LBC3086/41 has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. This maintains the system integrity so that loudspeakers in other areas can still be used to inform people of the situation.
Features
—Ceramic terminal blocks
—Thermal fuse and heat-resistant
—High-temperature wiring
—Suitable for speech and music reproduction
—Flush-mounting in ceiling cavity
—Easy to install
—Simple power setting
—Finished in neutral white, RAL9010.
—Complies with international installation and safety regulations
—BS 5839-8 compliant and EN54-24 compliant when used with the LBC3081/02 fire dome.
Model: LBC 3086/41
Colour White: Customized colours
Coverage angle HxV (-6 dB, 1 kHz) (°): 220 x 70 °
Coverage angle HxV (-6 dB, 4 kHz) (°): 130 x 18 °
Frequency range: (-10 dB) (Hz) 90 – 20000 Hz
Operating temperature (°C): -25 – 55 °C
Rated input voltage (V): 100 V
Sensitivity (1 W, 1 m, 1 kHz octave) (dB): 90 dB
Storage temperature (°C): -40 – 70 °C
Weight (kg): 1.30 kg
