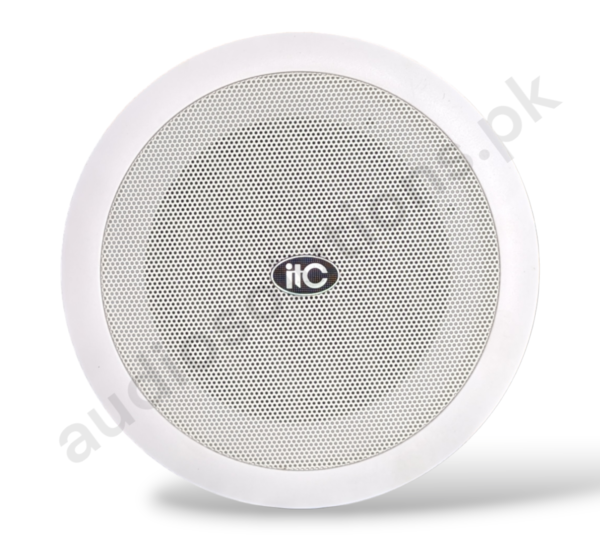

The T-105UN is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers. It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
FEATURES

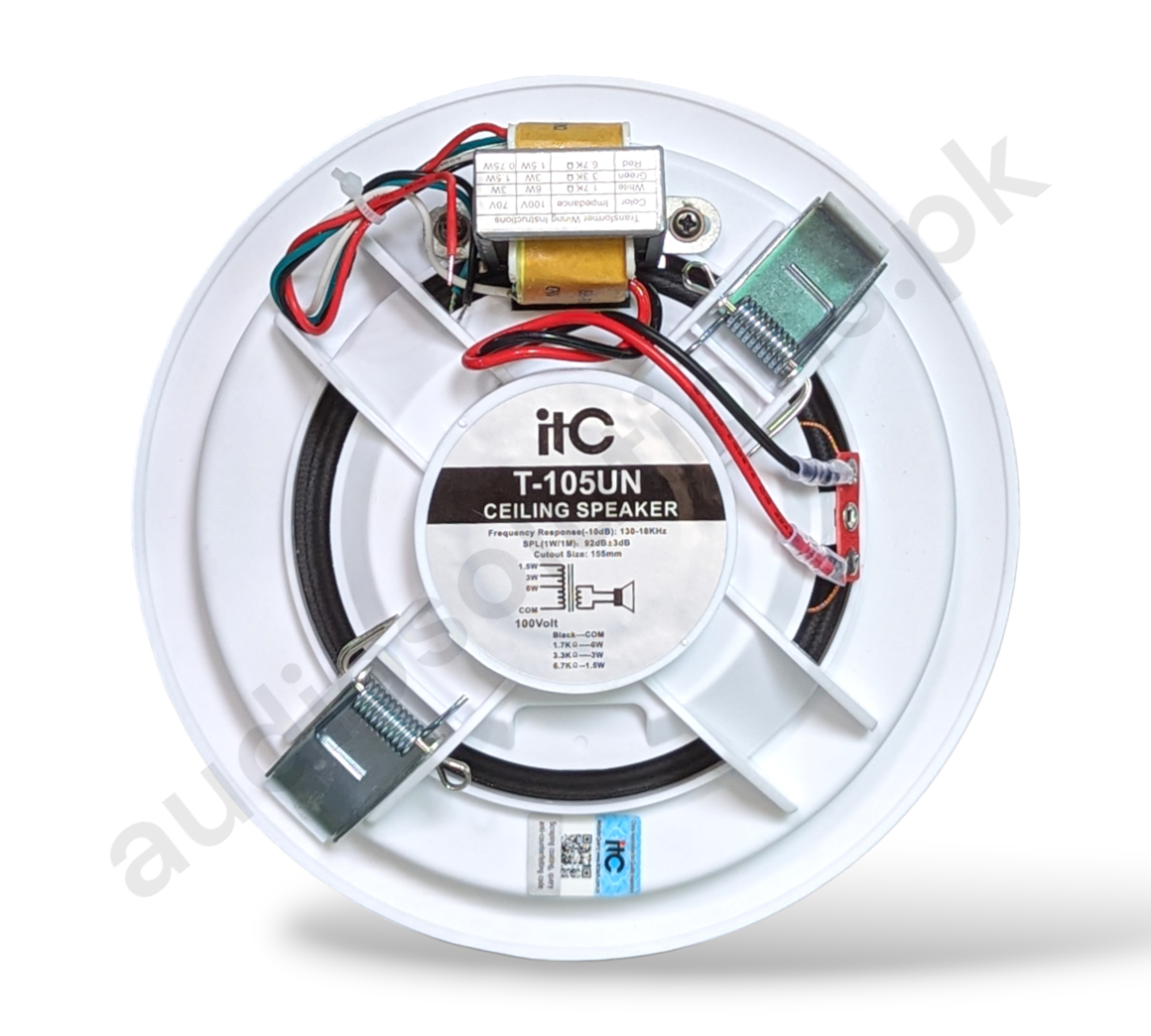

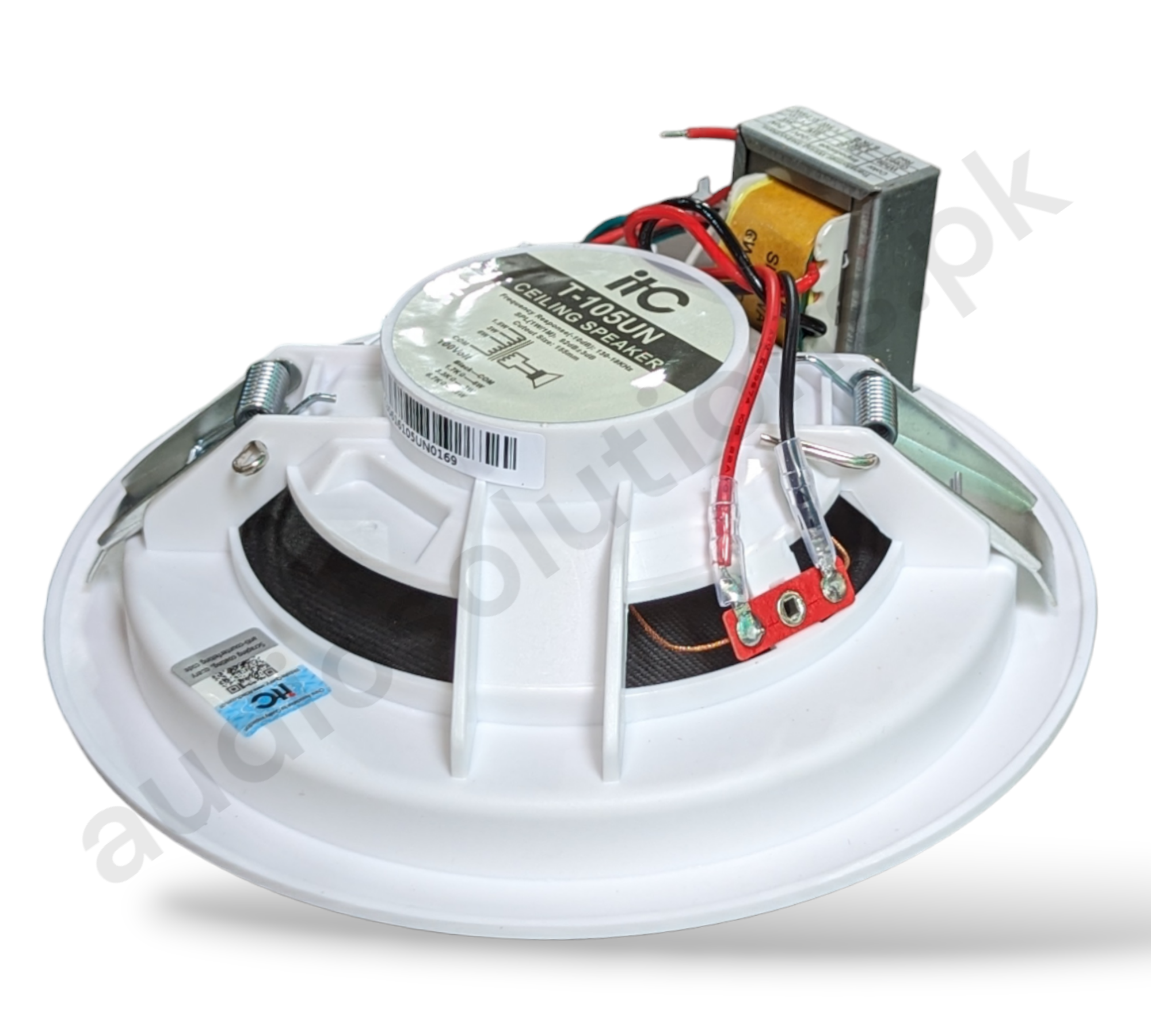

—Built-in 100v/70v transformer
—In-ceiling type loudspeaker
—5” speaker unit
—Power taps 1.5W, 3W & 6W @100V
—Aluminum grille & metal baffle
—Metal back box could be added
Original price was: ₨5,000.00.₨4,200.00Current price is: ₨4,200.00.
Model: T-105UN
| Power taps @100V | 1.5W, 3W, 6W |
| Power taps @70V | 0.75W, 1.5W, 3W |
| Impedance | Black: Com Red: 6.7KΩ |
| Green: 3.3KΩ White: 1.7KΩ | |
| SPL(1W/1M) | 92dB±3dB |
| Frequency response | 130-18KHz |
| Speaker driver | 5″×1 |
| Cut out size | 155 mm |
| Dimensions | 175X68 mm |
| Weight | 0.55Kg |
